GSCDD Only Page
Keep this page bookmarked for yourselves, to monitor the Staff Gauge project.
VIDEOS BELOW
Staff Gauge Project Photos
Site 1 - Weir 1
Site 2 - Weir 2 Upstream
Site 3 - Weir 2 Downstream

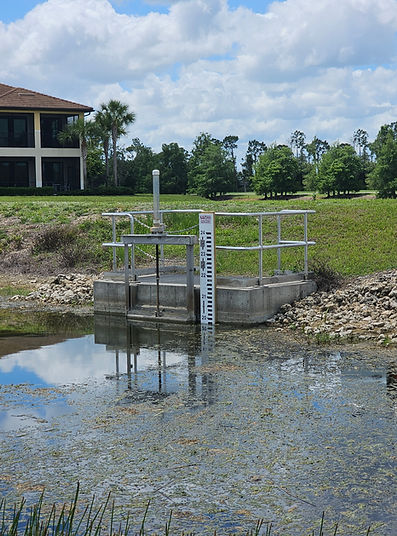

Site 4 - Weir 3 Flow-way
Site 5 - Weir 4 Gateway Hole 16
Site 6 - Weir 5 Gateway Greens
Site 7 - Stoneybrook
Site 8 - Hampton Park
Site 9 - Lake 114 "Swimming Pool"
Site 10 - Timber Creek East
Site 11 - Timber Creek West
Site 12 - Lake 79
CLICK ---->
to see approved Staff Gauge drawings
Here are some pictures of the folding mast bracket we've put in at Weir 1.
Note the boat crank, stainless steel cable and pulleys for lowering mast.
We got the solar panel and rain gauge up about 12 ft, hopefully out of danger forever!
Here is the mast in lowered postion, for maintaining the solar panel and rain gauge.
For extra tamper-proofing, the crank handle has been removed (stored in the SCADA box), and a nut and bolt installed to prevent the crank lock from being disengaged.
Staff Gauge Project;
PURPOSE
17 MIN
This video describes the whole purpose of the Staff Gauges, and how you'll use them. It also explains the need for maintenance of the water level recording stations, along with their $16,000 annual cost ($4,000 / quarter).
Staff Gauge Project;
SURVEYING 101
13 MIN
If you want to know, this video describes the purpose and use of Benchmarks, along with how we transfer their levels to a location we need for the new Staff Gauges.
Staff Gauge Project;
DATUMS
13 MIN
This video describes further details on what a DATUM means when referring to your Staff Gauges, and why they will have NAVD88 displayed on them.
